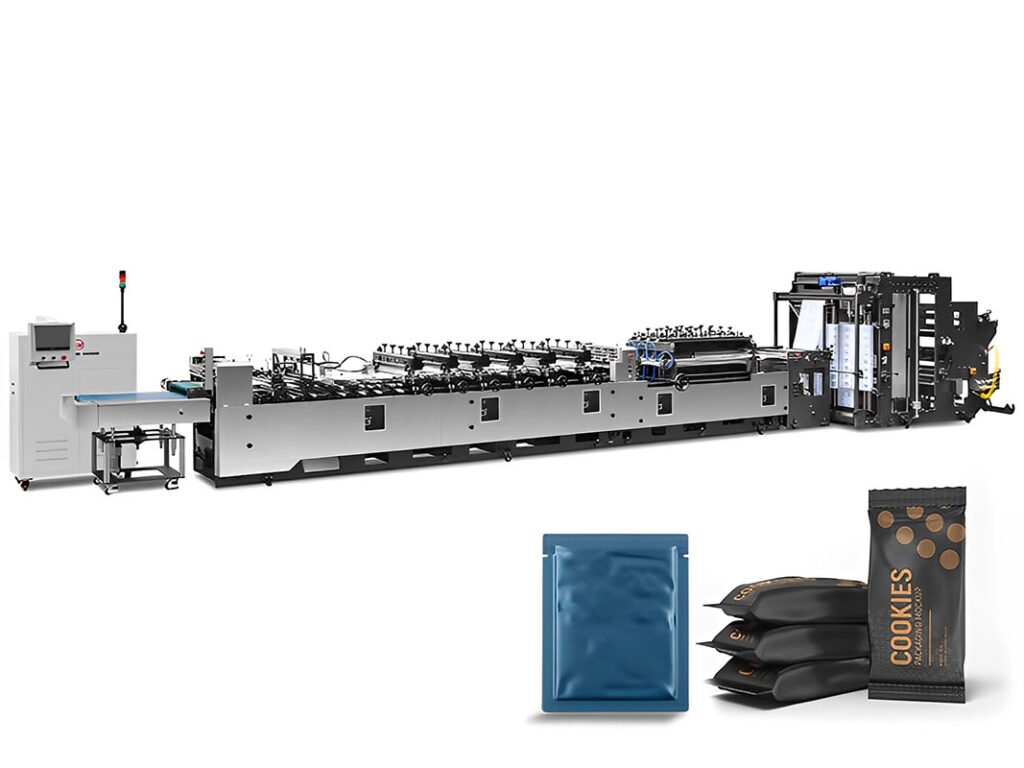

Three Side & Center Sealing Pouch Making Machine
This is a standard-sized multi-functional bag-making machine that supports three-side seal bags and center seal bags, and supports various combination accessories.
Model: PZD-6A
Main Features
- It has EPC and double photocell tracking from unwinding.
- Super length size, which has a 6 times skip feeding design.
Options：
- Unwind storage (non-stop roll exchange)
- Special die cut machine
- Main motor servo
- Double cutting system and round corner puncher
- Center sealing gusset bag
Technical Parameters
Model | PZD-6A | ||
L/Bag Making Length | 50-420mm x N(N<=6) | Unwinder Rolls Film Width | 1200mm |
W/Bag Making Width | 100-580mm | Unwinder Diameter of Roll | 800mm |
W1/Single Line Width | 75-580mm | Speed Of Bag Making | |
S1/Bottom Seal Width | 5-60mm | *3 Side Sealing Bag | 170pcs/min |
S2/Vertical Seal width | 10-60mm | *Line Speed | 40m/min |
Air Compressor | 0,6mpa (6kgf/cm^2) | L*W*H (With Storage Function) | 11.8*1.9*1.96m |
Water Coling | About 15L/min | ||
Exploded view of pouch making
