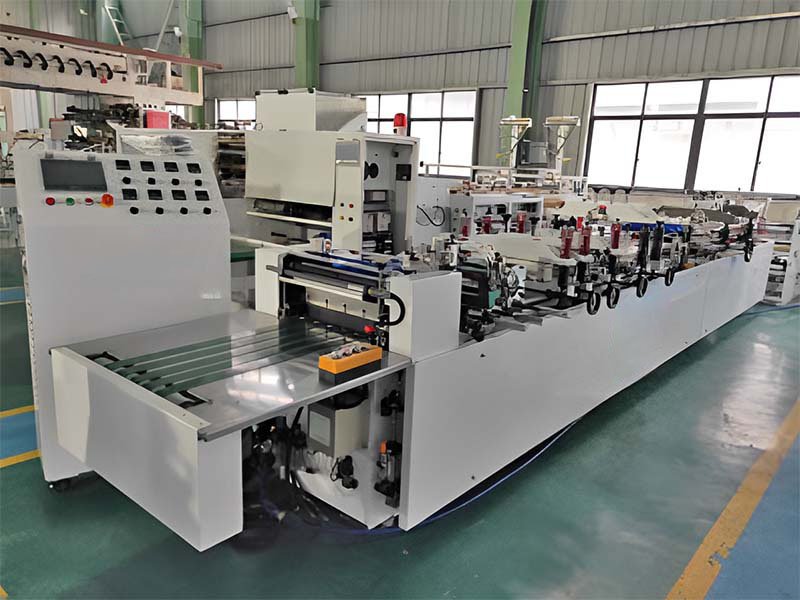

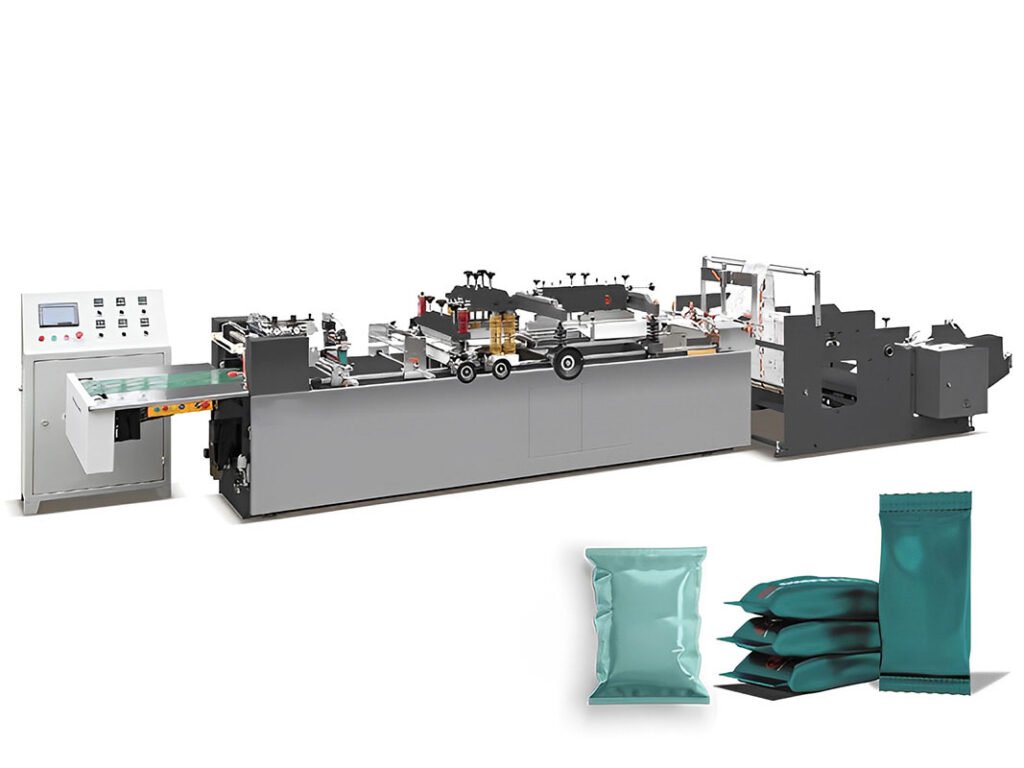

Small Center Sealing Pouch Machine
The length of 5.8 meters is already a very small size for such a laminated composite bag-making machine. This machine can make various center-sealed bags, such as common potato chip bags and three-side sealed flat bags.
Model: P-4MCP
Main Features
- New mini design, space-saving, and easy to operate.
- Servo drive is suitable for long-term, high-speed operation of the machine.
- Fully automatic tension control, no mistakes
- Comes with punching device.
Options：
- Center sealing gusset device.
- Easy tear-up+hole punch device.
Technical Parameters
| Model | P-4MCP |
| Width of unwinding | 1000mm |
| Pouch-making length | 50-200mm |
| Pouch-making width | 60-300mm |
| Total power | 9.4KW |
| Weight of machine | 2040kg |
| Overall dimension(LxWxH) | 5800x1500x1350mm |
Machine Details
punch device

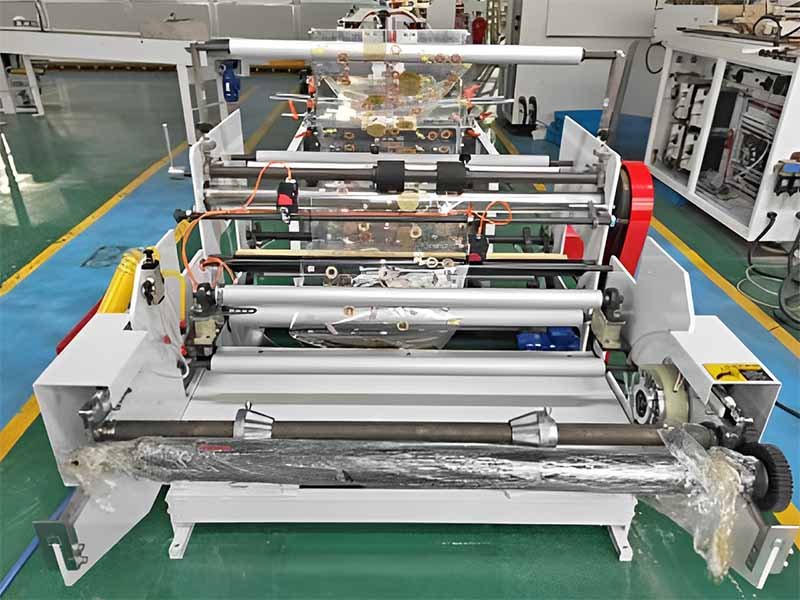

Double Unwinding Part.

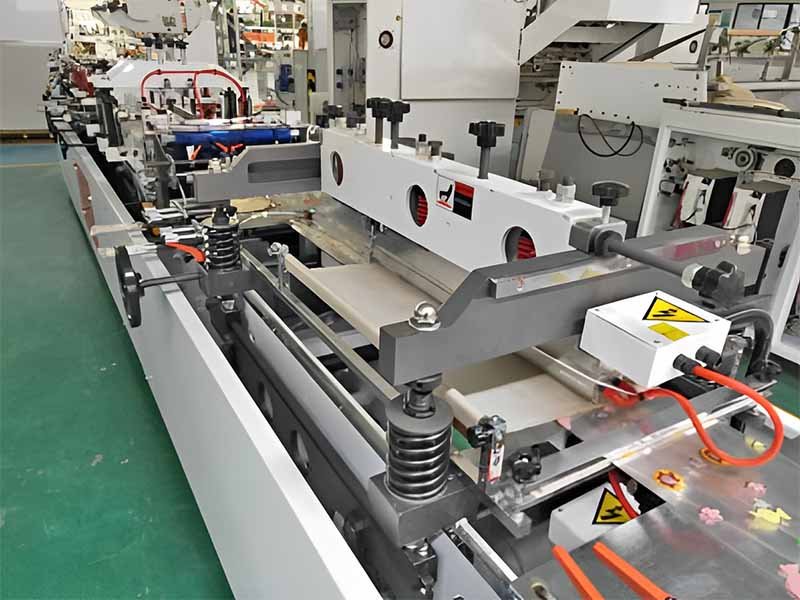

Center sealing part
Longitudial sealing bar
Center gusset device
Collecting table and control box

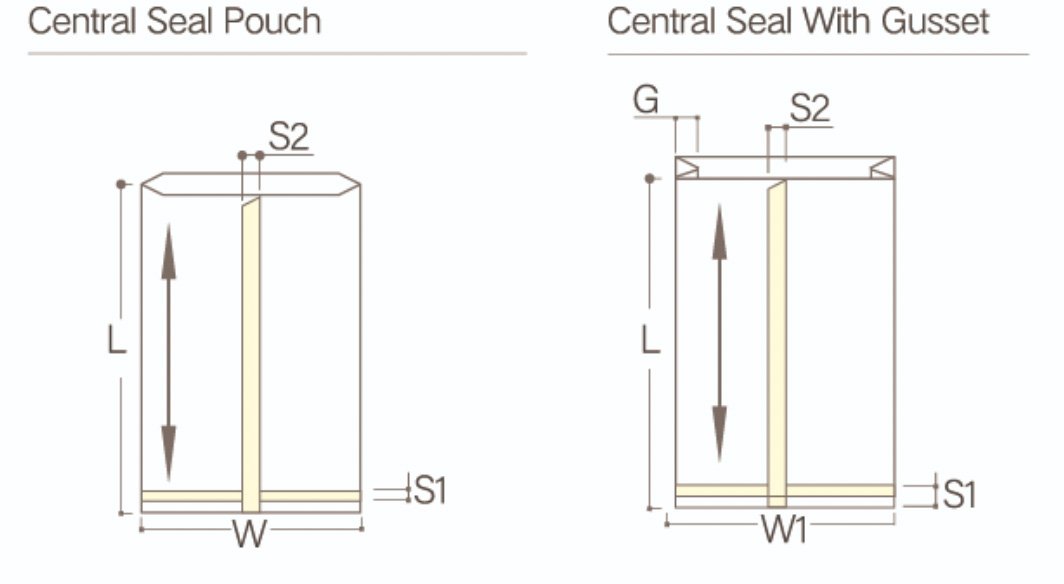

Finished product effect reference
