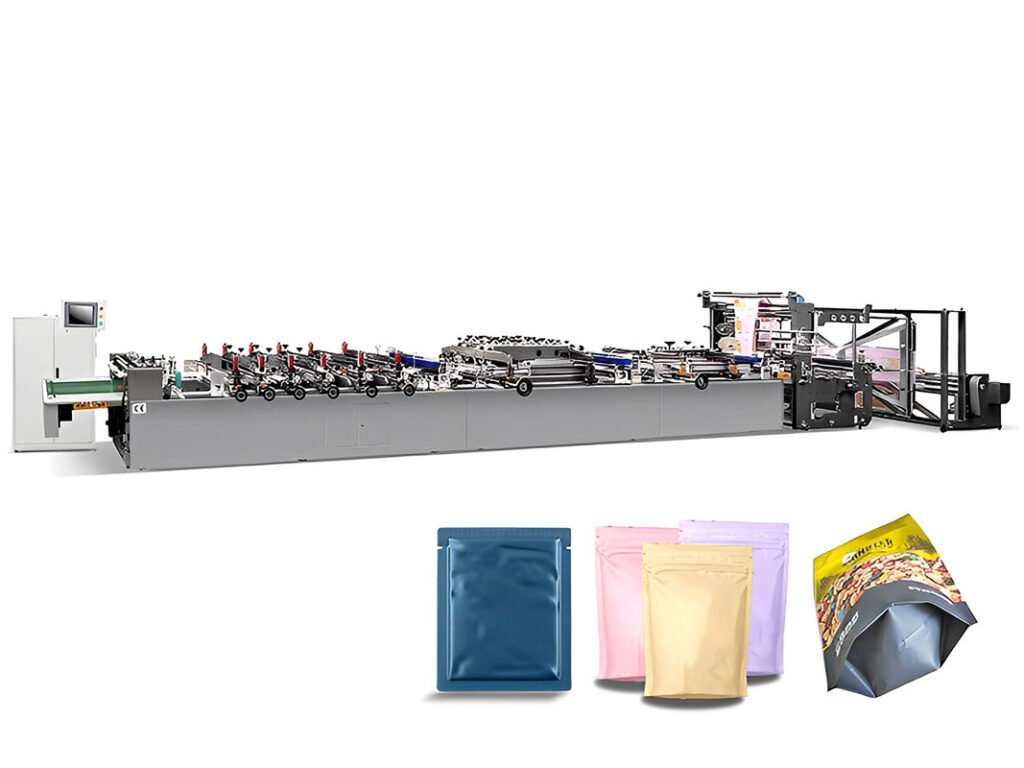

Multifunctional stand up bag making machine
This bag-making machine adds a component to the 6C model, allowing it to produce an additional bag type: a single-layer film self-supporting bag.
Model: P-6C+FD
Main Features:
- Newly design zipper and stand up device.
- Newly design feeding structure, high speed feeding no shake
Options：
- Air cylinder automatic loading device
- Hang hole puncher
Technical Parameters
Model | P-6C+FD | ||
L/Bag Making Length | 50mm-420mmX 6N (N=SKIP) | Unwinder Rolls Film Width | 1200mm |
W/Bag Making Width | 100mm-580mm | Unwinder Diameter Of Rolls | 800mm |
W1/Single Line Width | 75-580mm | Speed Of Bag Making | |
S1/Bottom Seal Width | 5mm-60mm | *3 Side Sealing Bag | 170pcs/min |
S2/vertical Seal Width | 10mm-60mm | *Zipper Bag | 150pcs/min |
Z/Zipper Width | 13mm | *Stand Up And Zipper Bag | 150pcs/min |
ZW/Double Line Zipper Bag Central Distance | 60mm | *Doypack And Zipper Bag | 150pcs/min |
G/Edge Gusset Depth | 25mm-60mm | *Line Speed | 40m/min |
A/ Punch Diameter | 16mm | L*W*H | 17*1.9*2.4m |

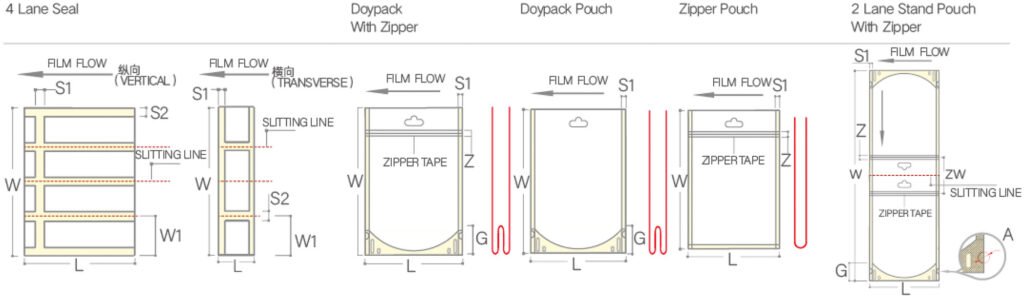

Exploded view of pouch making
