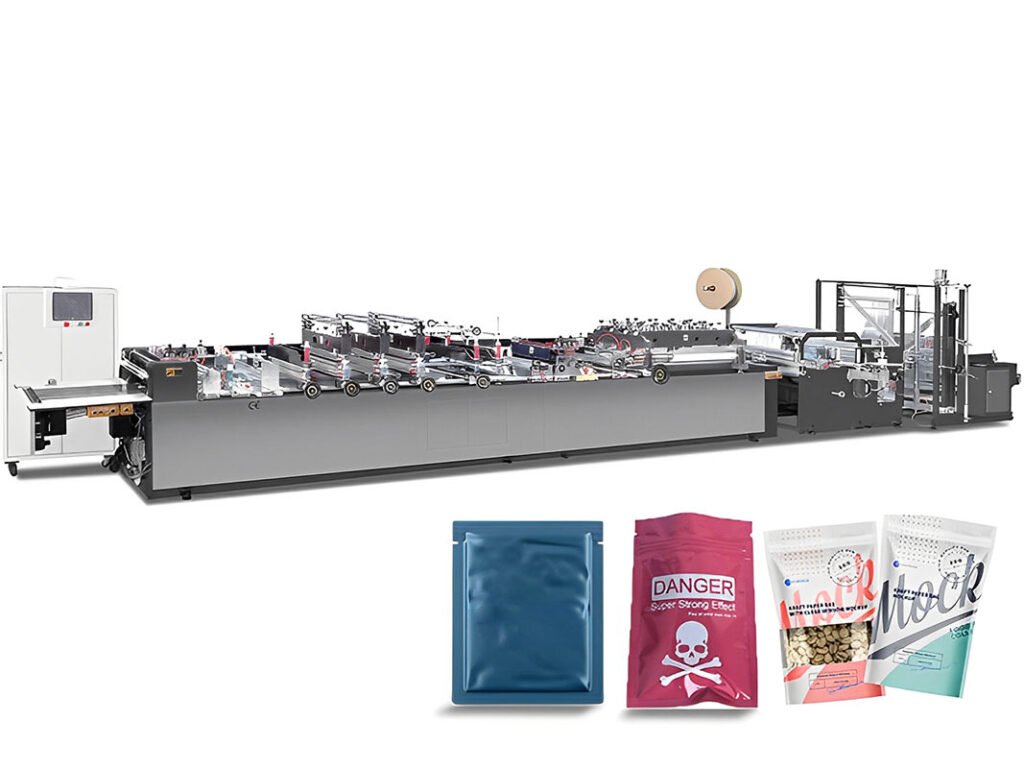

Heavy Duty Multifunction Laminated Pouch Making Machine
This heavy-duty pouch-making machine can make three different bag types: three-side seal bags, zipper bags, and stand-up bags.
Model: P-6C
Main Features
- Comes with a set of breathing hole punchers, and has 6/8/10mm molds that can be replaced.
- Comes with v-notch punch
- Equipped with waste membrane collector
Technical Parameters
| L（ Bag Making Length） | 50-420mmX 6N (N=SKIP) | Unwinder Rolls Film Width | 1200mm |
| W（Bag Making Width） | 100-580mm | Unwinder Diameter Of Roll | 800mm |
| W1（Single Lane Width | 75-580mm | Speed Of Bag Making | |
| S1（ Bottom Seal Width) | 5-60mm | 3 Side Sealing Bag | 170pcs/min |
| S2（ Vertical Seal Width） | 10-60mm | Zipper Bag | 150pcs/min |
| Z（ Zipper Width） | 13mm | Stand Up And Zipper Bag | 150m/min |
| ZW（ Double Line Zipper Bag Central Distance） | 60mm | Line Speed | 40m/min |
| A（Punch Diameter） | 16mm | Dimension Of Machine L*W*H | 14.5*2.2*2m |
| G （Bottom Gusset Depth） | 25-60mm | Air Compressor | 0.6mpa( 6kgf/cm2) |

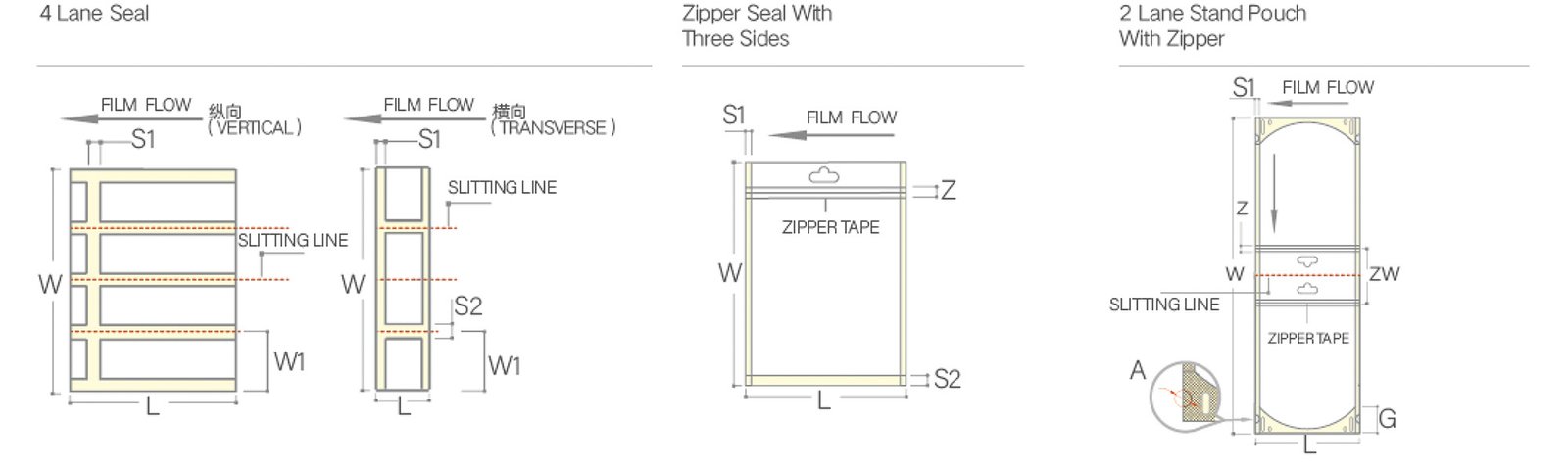

Finished product effect reference
