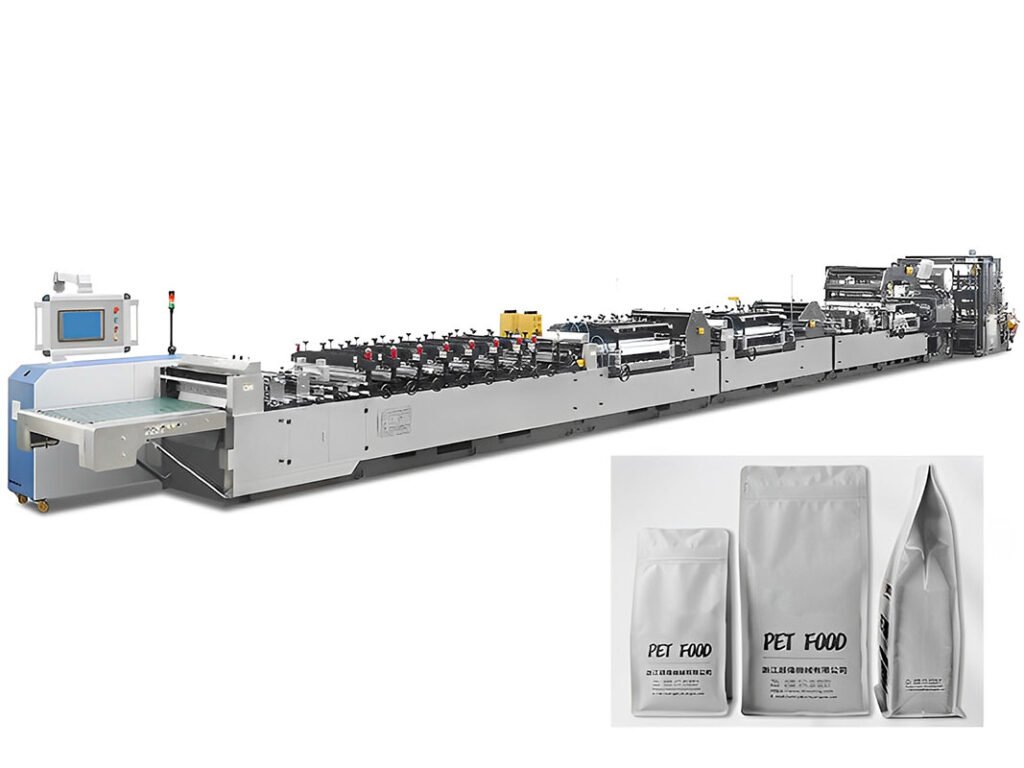

Eight-side sealing square bottom pouch making machine
This eight-side seal square bottom pouch making machine can make heavy-duty square bottom pouch with zippers. It is also compatible with three-side seal pouch. It runs fully automatically at high speed and can make 150 bags per minute.
Model: P-7SQB
Options：
- Unwind storage (non-stop roll exchange)
- Special die cut machine
- Main motor servo
- Double cutting system and round corner puncher
- Center sealing gusset bag
Technical Parameters
Model | P-7SQB | ||
L/Bag Making Height | 150-650mm-2BG (*1) | Unwinder Of Body Material | 1300mm |
*1 | From Single Web Film | Unwinder Of Gusset Material | 400mm |
L/Bag Making Height | 150-650mm (*2) | Unwinder Diameter of Body Material | 800mm |
*2 | Additional Film Froms Flat bottom | Unwinder Diameter Of Gusset Material | 800mm |
W/Bag Making Width | Max: 100-420mm | Speed Of Bag Making | 150pcs/min |
W1/Single Line Width | Min: 15mm | L*W*H (With Storage Function) | 11.8*1.9*1.96m |
G/Side gusset depth | 30-90mm | Line Speed | 30m/min |
BG/Bottom gusset depth | 30-90mm | Machine Weight | 13200kg |
H/Bottom Punch | 16mm | L*W*H | 25.6*5.5*2.1m |
S/Bottom Seal | 5-60mm | ||

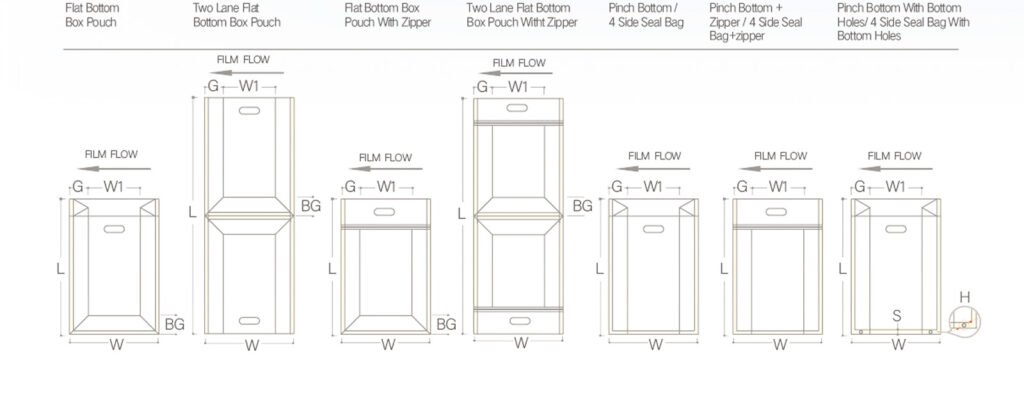

Exploded view of pouch making
