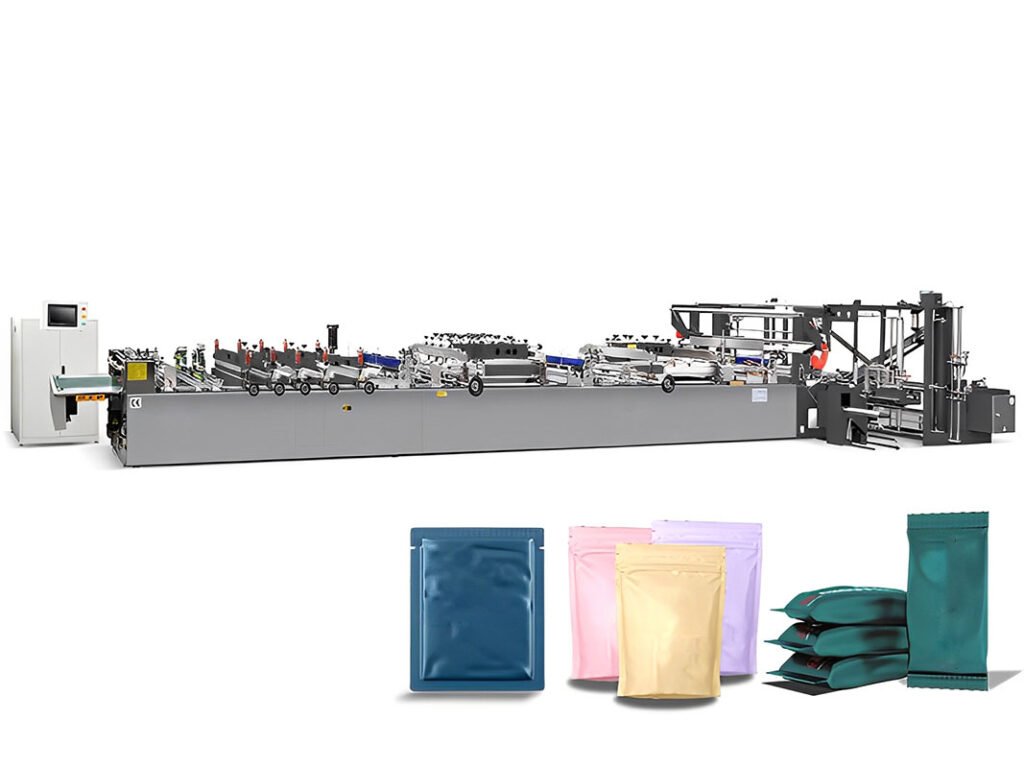

Automatic Multifunction Laminated Bag Making Machine
This machine can produce four different bag types, namely center-seal bag, three-side-seal bag, center-seal gusset bag, and four-side-seal bag.
Model: P-6C+CS
Options：
- industrial chiller
- double unwind device
- ang hole puncher
Technical Parameters
Model | P-6C+CS | ||
L/Bag Making Height | 50mm-420mmX 6N (N=SKIP) | Unwinder Rolls Film Width | 1200mm |
W/Bag Making Width | 100mm-580mm | Unwinder Diameter Of Rolls | 800mm |
W1/Single Line Width | 75-580mm | Speed Of Bag Making |
|
W2/Center Width | 100-400mm | *3 Side Sealing Bag | 170pcs/min |
W3/Center Gusset Seal Width | W2-2G | *Center Sealing Bag | 150pcs/min |
S1/Bottom Seal Width | 5mm-60mm | *Center Sealing With Gusset | 140pcs/min |
S2/vertical Seal Width | 10mm-60mm | *Zipper Bag | 150pcs/min |
Z/Zipper Width | 13mm | *Stand Up With Zipper | 150pcs/min |
ZW/Double Line Zipper Bag Central Distance | 60mm | *Line Speed | 40m/min |
A/Punch Diameter | 16mm | L*W*H | 16*2.2*2m |
G/Bottom Gusset Depth | 25mm-60mm |
|
|
Exploded view of pouch making
