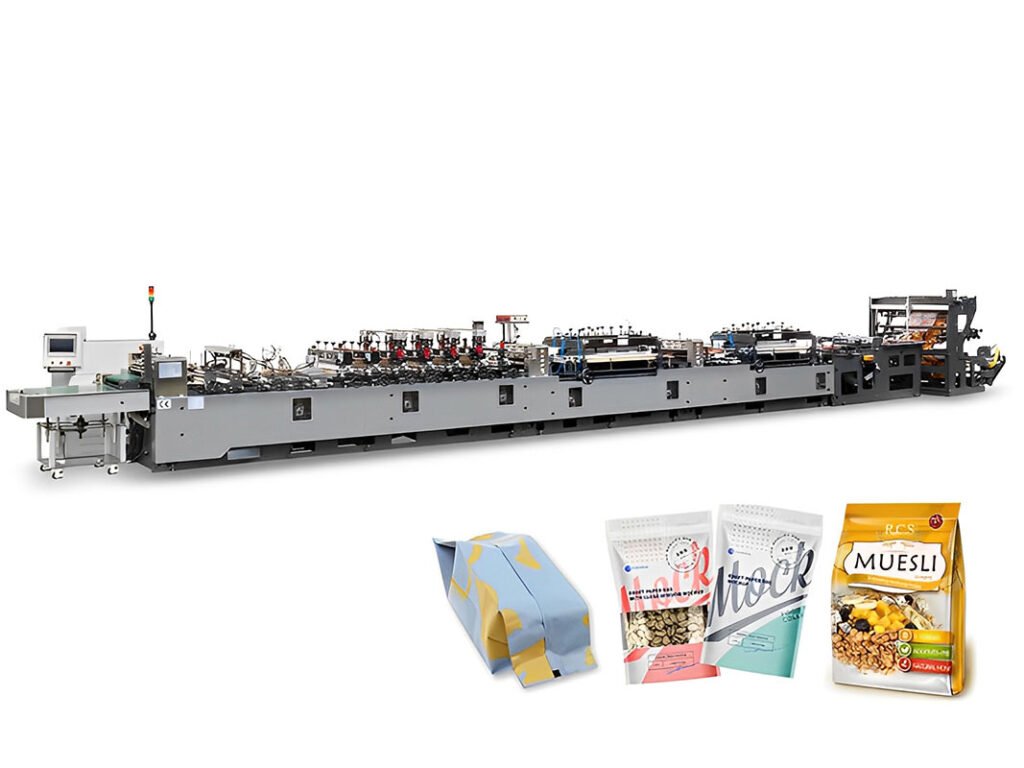

All-purpose pouch making machine
This is an all-around bag-making machine that can make a total of eight different bag types, and each bag type can be produced at high speed. If you only have the budget for one machine, this one is undoubtedly the best choice.
Model: P-6ZF+SZ
Main Features：
- Support various bag types.
- Dual servo motors, inverter control, stable operation.
- Bridge type heavy pressing heat sealing structure, the sealing have a high intensity.
Options：
- handle puncher.
- Butterfly type puncher.
Technical Parameters
|
Model |
P-6ZF+SZ |
||
|
L/Bag Making Length |
50mm-420mmX 6N (N=SKIP) |
Unwinder Rolls Film Width |
1200mm |
|
W/Bag Making Width |
100mm-580mm |
Unwinder Diameter Of Rolls |
800mm |
|
W1/Center width |
100-300 |
Speed Of Bag Making |
|
|
W2/unwinder gusset |
100-580m |
*2Sides Seal |
140pcs/min |
|
W2/middle gusset |
580mm-2G |
*C Fold2Sides Seal |
170pcs/min |
|
W3/unwinder gusset |
100-400m |
*Central Seal |
170pcs/min |
|
S1/Bottom Seal Width |
5mm-60mm |
*Central Seal with Gusset |
160pcs/min |
|
S2/vertical Seal Width |
10mm-20mm |
*Side Seal With Gusset |
120pcs/min |
|
Z/Zipper Width |
13mm |
*Four Sides Seal |
120pcs/min |
|
G/Edge Gusset Depth |
25mm-60mm |
*Stand Up Pouch with Zipper |
120pcs/min |
|
|
|
*Stand Up Pouch / Zipper Pouch |
120pcs/min |
|
|
|
L*W*H |
16.5*1.9*1.8m |
Exploded view of pouch making
