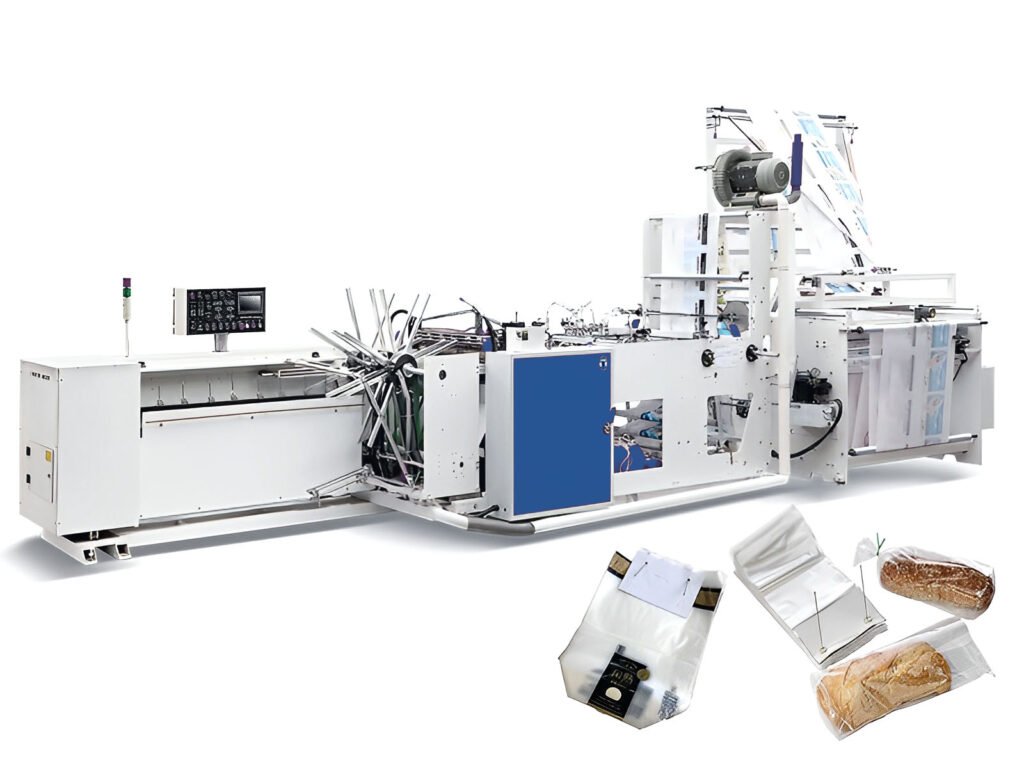

P-8BFS Plastic Food Bag Making Machine
This machine can produce flat-bottom or round-bottom plastic bags, which are more convenient for packaging food.
Model: P-8BFS
Main Features
- Rotating arm bag collecting device, high-speed bag collecting.
- High-precision printing image tracker.
Options：
- Hanger hole puncher device
- Chicken bag puncher device
- Bottom pre-heat device
Technical Parameters
| Type | P-8BFS |
| Length of bag-making | 300-700mm |
| Width of bag-making | 100-350mm |
| Bottom gusset | 30-70mm |
| Speed of machine | 250pcs/min |
| Total Power | About 22KW |
| Weight of machine | 2200KG |
| Dimension of machine | 8000*2800*1950mm |
| Air compressor ( not included ) | 7.5HP |
Machine Details

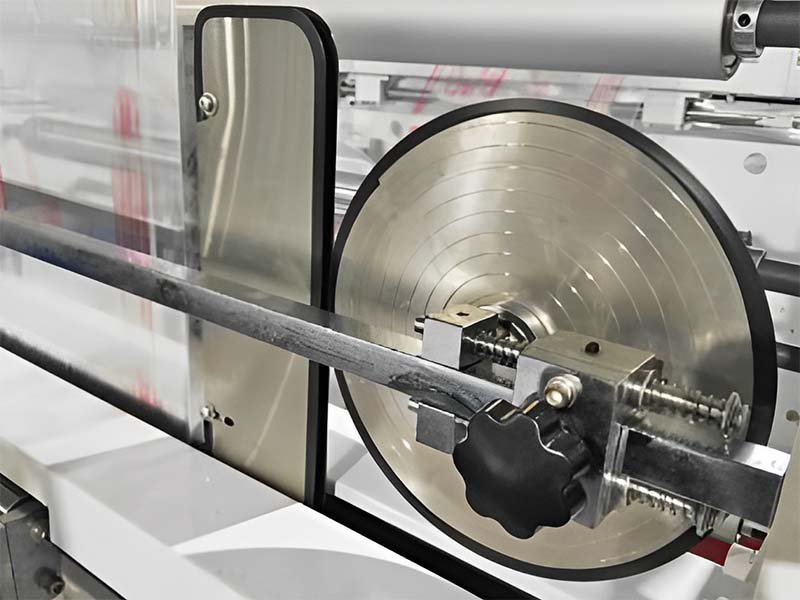

bottom gusset device
Bottom gusset, the maximum gusset depth 60mm.

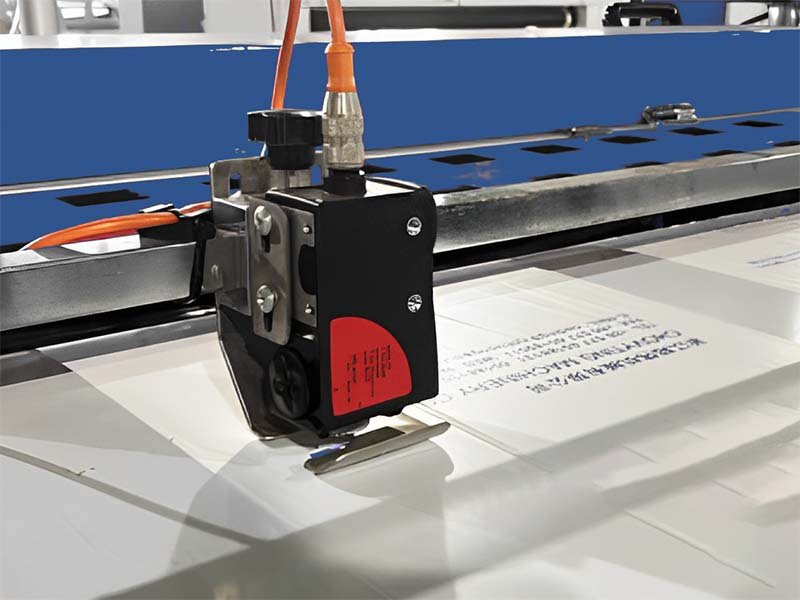

Printed Image Tracker
The tracking device is imported from Italy, with a low failure rate and precise cutting.

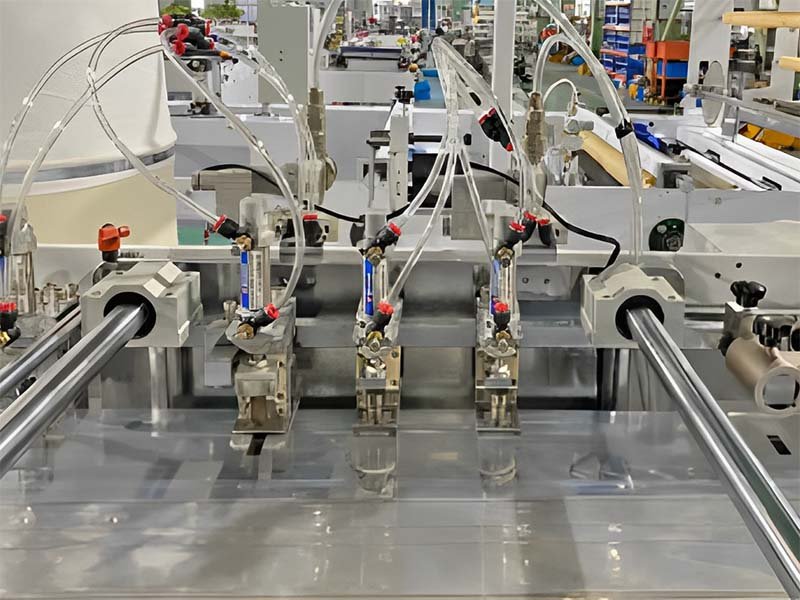

Batch hole punch
Equipped with EPC, batch and precise punching.

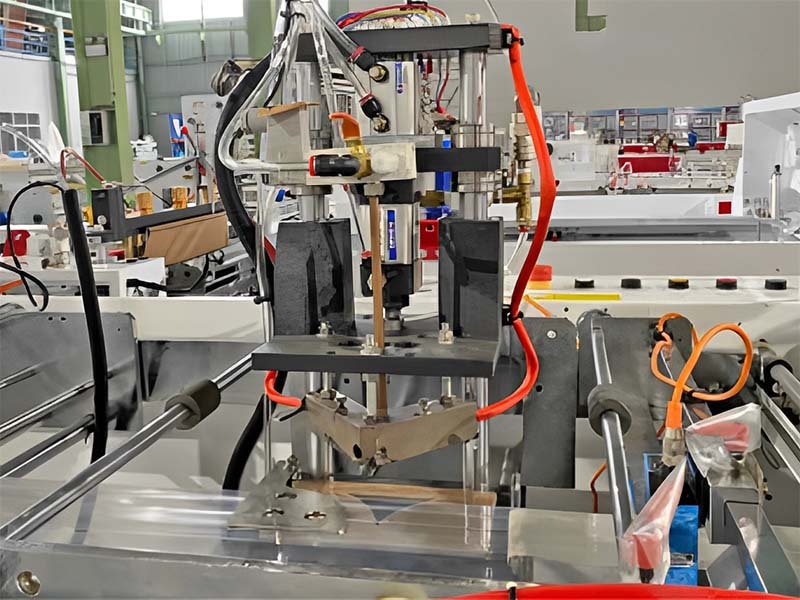

Forming punch
Food bags can be stamped with square or round bottoms.

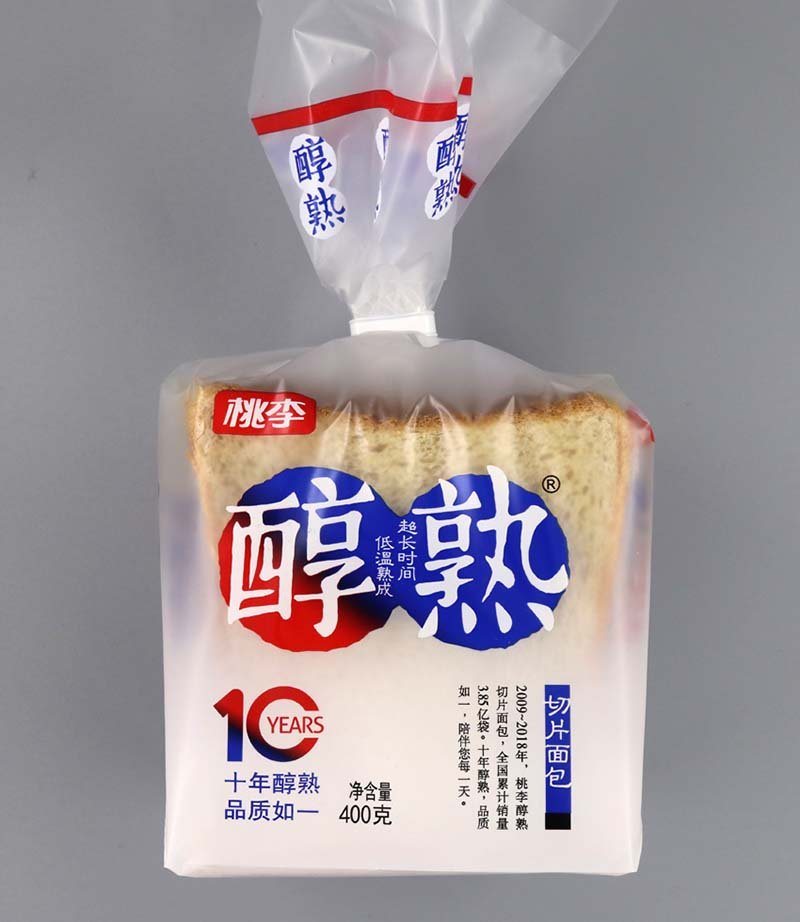

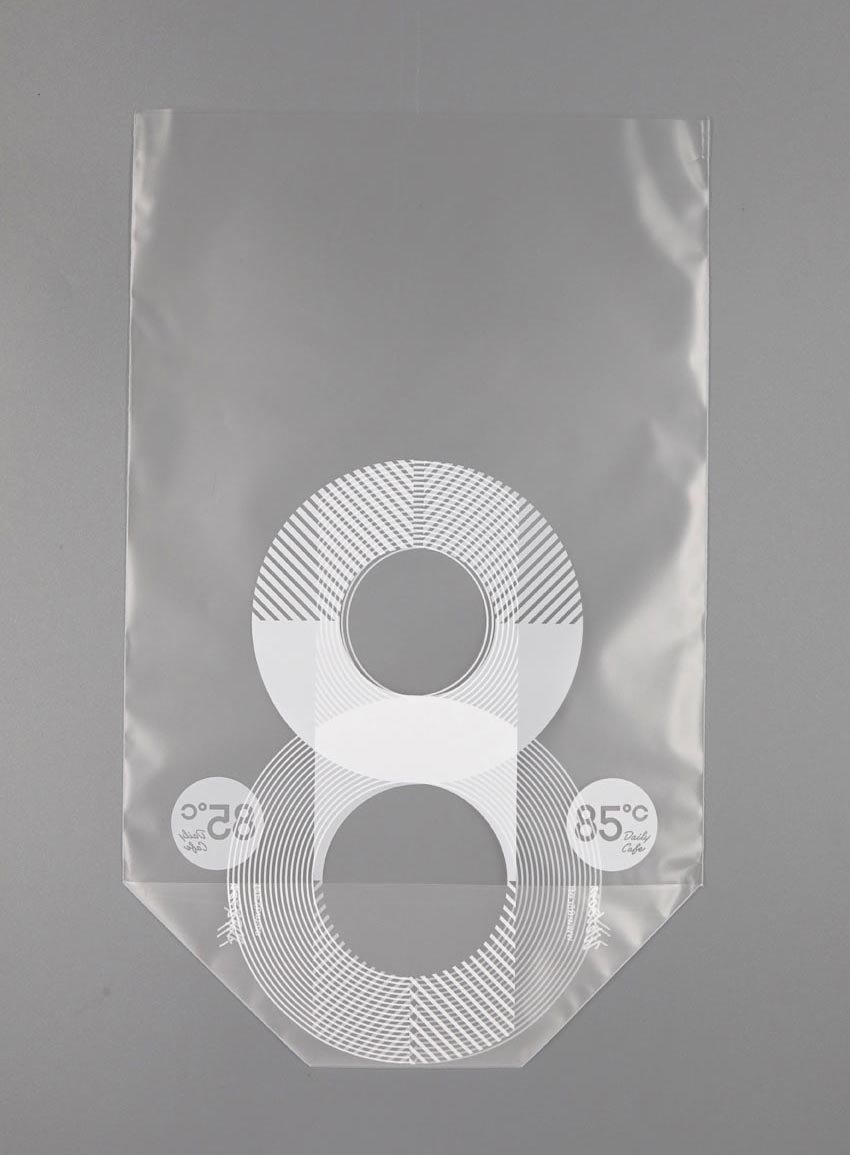

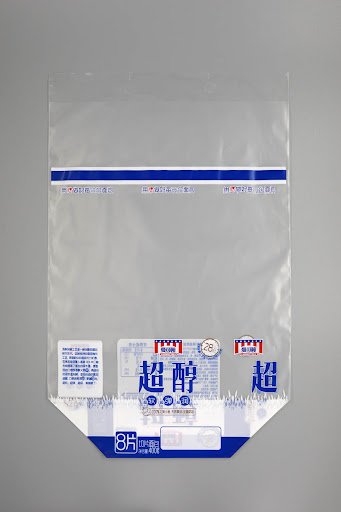

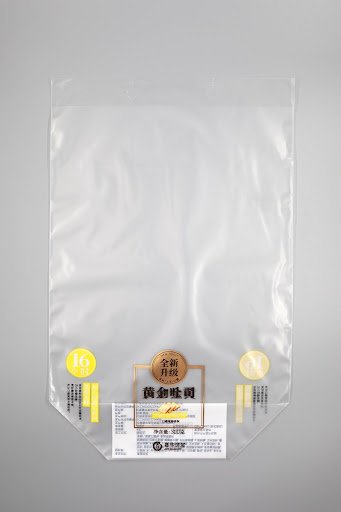

Finished product effect reference
