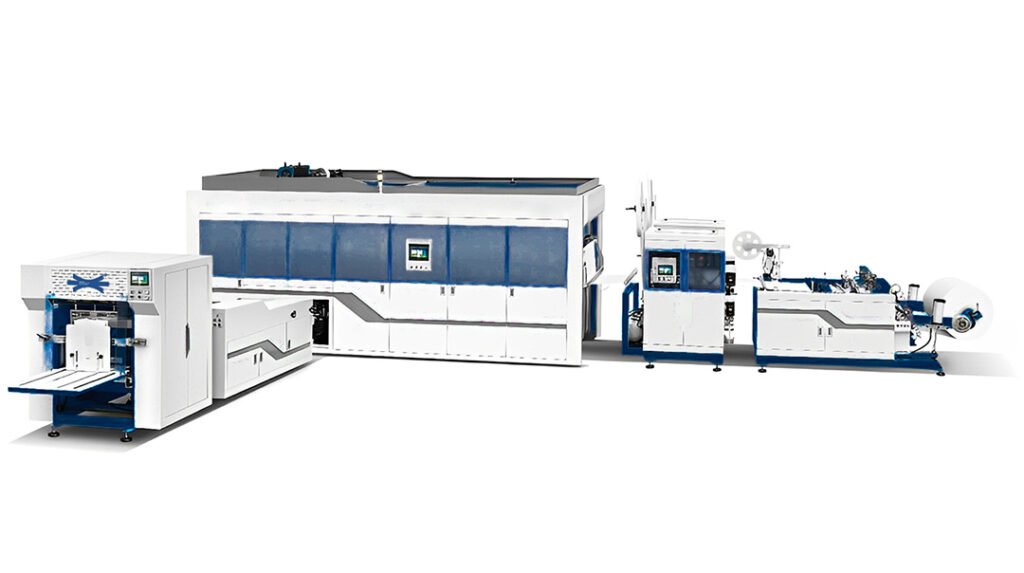

PLT500 RPET/PET Non woven Box Bag Making Machine
This is a multifunctional composite non-woven bag-making machine. It can customize the bag size parameters and supports all kinds of laminated non-woven materials. It can produce thermal insulation and waterproof composite non-woven bags.
Optional
- Non-woven fabric slitting machine
- Non-woven fabric printer
- Non-woven fabric punching machine
Technical Parameters
Suitable material | Rolls of pp spunbond/PLA Spunbond/RPET Spunbond/RPET stichbond |
|
Material width | 550-1160mm | |
Material thickness | 80-120gsm | |
Bag height | 200-450mm | |
Bag width | 135-500mm | |
Compressed Air Flow | 1.2m3 /min | |
Compressed Air Pressure | 1.0MPa | |
Max power | 45KW | |
Speed | 45-100pc/min | |
Bag gusset | 80-200mm | |
Machine weight | 9500kg | |
Handle size | 380-600mm | |
Power supply | 380V/50HZ/3P | |
Dimension(L*W*H) | 10100x6850x2500mm | |
